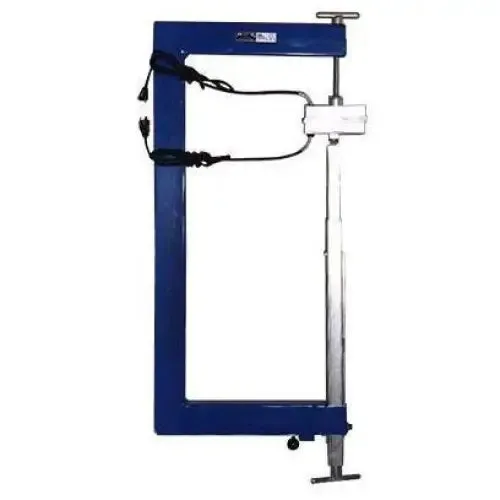

Giant Tire Vulcanizer with Contour Bags
Features:
- Ideal for making small repairs on giant tires.
- Independently operating thermostatically-controlled head units reach and maintian operating temperature quickly and efficiently.
- Spring loaded lower heat unit maintains even pressure throughout curing process.
- Lower telescoping assembly slides back for quick mounting/removal of spotter - then locks into desired position for use.
- All acme threaded upper pressure screw and lower telescoping assembly for long, trouble free wear.
- Spot and section repair grader and giant tires through 37.5 x 39in .
- Sidewall spot repairs possible without dismounting tire.
- B-3 (T096) Pliable contour bags loops over heat unit and conforms to irregular surfaces while transferring heat and pressure.
- Available in 120 or 240 volt.
Product Information
- Throat depth: 14-1/2 in
- Throat Height: 31-1/2 in
- Curing heads: (2) 4-3/8 in x 6-3/8 in 1
Includes:
- T177: Frame for GT-2
- T045: Upper (swivel heat unit (4-3/8 in x 6-3/8 in)
- T046: Lower (spring loaded) heat unit (4-3/8 in x 6-3/8 in)
- T178: Handwheel adjusting screw (upper heat unit)
- T179: Nut for part no. 1778
- T116: Telescoping pressure screw assembly (lower heat unit)
- T175: Compression Spring
- T176: Fiber rod
- T146: Thermostat for 4 in x 6 in HU
- T127: Element for 4 in x 6 in HU
